The HCR2-1506 is one of the most popular HAPPY multi-heads in the multi-head lineup, thanks to its unique combination of versatility and production power. The 6-head is just 2 feet, 5 inches longer than the 4, and yet gives the operator the ability to sew 1 dozen pieces in just 2 runs! HAPPY multi-heads are long-known for their quality and durability and the new HCR3 technology helps make the 1506 our strongest, most productive 6-head yet, with servo-driven main motors for faster, quieter sewing, and reinforced construction in many key areas for for greater durability and more consistent quality over a wide variety of conditions.
KEY FEATURES
⦁ Servo-driven main motor for quieter, higher speed operation
⦁ New carriage base design for smoother, steadier operation at all sewing speeds
⦁ Improved sewing head powers through tougher sewing jobs
⦁ Large, user-friendly touch screen control with on-board help, auto-error correction
⦁ USB flash drive ports, LAN and USB direct PC connection ports, connection software included
⦁ 40 million stitch/999-design memory; organize designs in folders, pull designs from remote PC
⦁ Load & set up additional designs while the machine is sewing for max productivity
⦁ Automatic Color Change / 250 changes allowed per design
⦁ Make Design Adjustments On-The-Spot: flip/rotate, auto-repeat, fine-scaling, offset from center, and more
⦁ Automatic production & error reporting

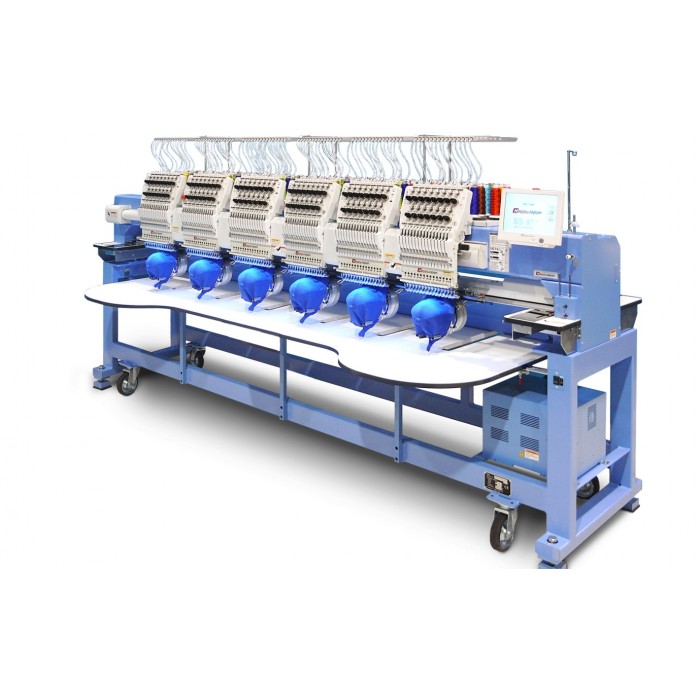

⦁ Quick detachable support table (shown in photo)

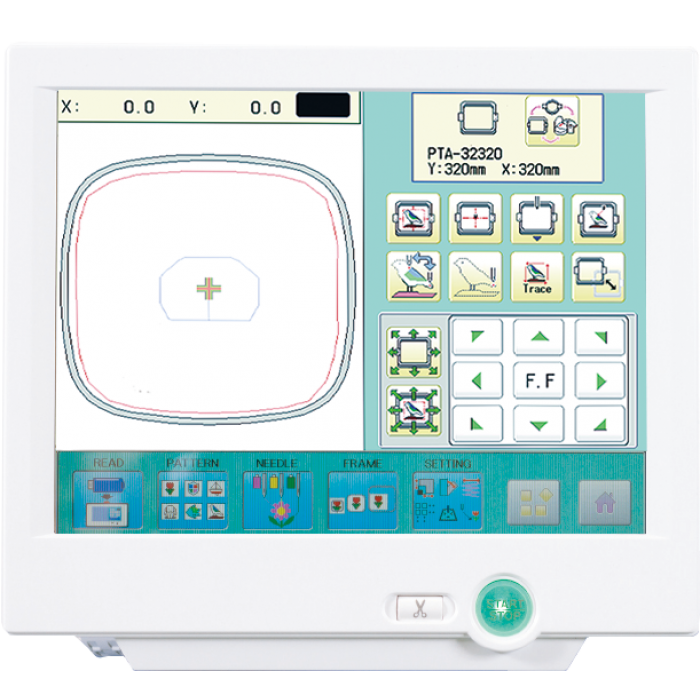

Multi-Head Machines have a 10″ touch screen panel that is packed with features!
⦁
⦁ • The 10″ touch screen has a vivid LCD interface
• Easy Design Placement- Shows hoop as related to the design
• Displays your key sewing information at a Glance
• Customize your screen the way you want
• Easily place the Applications that you use most on the main screen
• One touch frame out for easy Applique
• Easy Design trace
• Full Built-in Networking and USB ports
• Auto Error correction for the most common issues
• One touch Firmware updates
• Advanced Control over every aspect of your sewing experience-
• Speed
• position
• Color Sequence/ Change
• And Much More!
HAPPY HCR3- 1506 Machine Specifications
INCLUDED WITH MACHINE
(new HCR embroidery machines purchased from Texmac)
⦁ Full set of tubular hoops, 2 of each size per sewing head:
⦁ 12 x 12cm round hoops
⦁ 12 x 15cm round hoops
⦁ 12 x 18cm round hoops
⦁ 12 x 32cm square hoops
⦁ Full cap sewing equipment: quick-change sash and drivers, 12 cap hoops (2 per head). Auto-design rotation on entering cap mode
⦁ Operator’s toolkit and manuals
⦁ Heavy duty casters and height-adjustable feet
⦁ Installation, setup, telephone and internet support from Texmac
⦁ 5-year limited warranty on all Happy HCR multi-head embroidery machines
Machine Performance Specs
⦁ Configuration: 6 heads, 15 needles per head
⦁ Max speed (normal) 1,100spm; cap sewing: 1000spm.
⦁ Max needle distance: 360mm
⦁ Memory capacity: 999 designs or up to 40 million stitches, 250 color changes per design
Embroidery Sewing Field Per Head
⦁ Max needle distance: 450mm x 360mm (17.7″ x 14.2″)
⦁ Tubular frame field: 320mm x 320mm (12.6″ x 12.6″)
⦁ Ballcaps: 80mm x 360mm (3.1″x 14.2″)

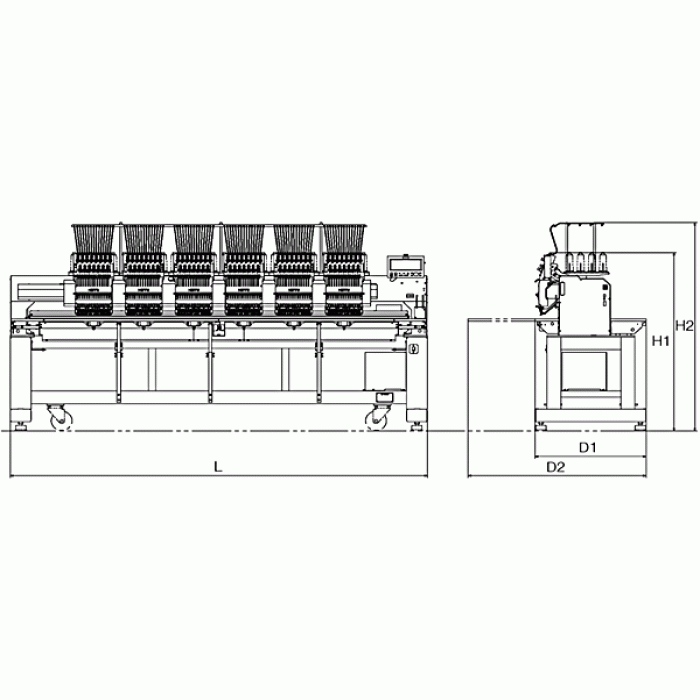

Key Outer Dimensions
⦁ Length: 9ft, 10in; Depth (D1=32.7in with table removed) (D2=52in; Height: 68.5in with thread rack, 59.5in without.)
⦁ Crated Dimensions: Length: 10ft, 9in; Height: 70in; Width: 44in
⦁ Weight: 1826 lb crated; 1408 lb uncrated
Power Requirements
⦁ Power type: 220v Single-phase, frequency 50/60hz
⦁ Usage: ~410W*note: Dimensions and other specifications may be subject to correction.
