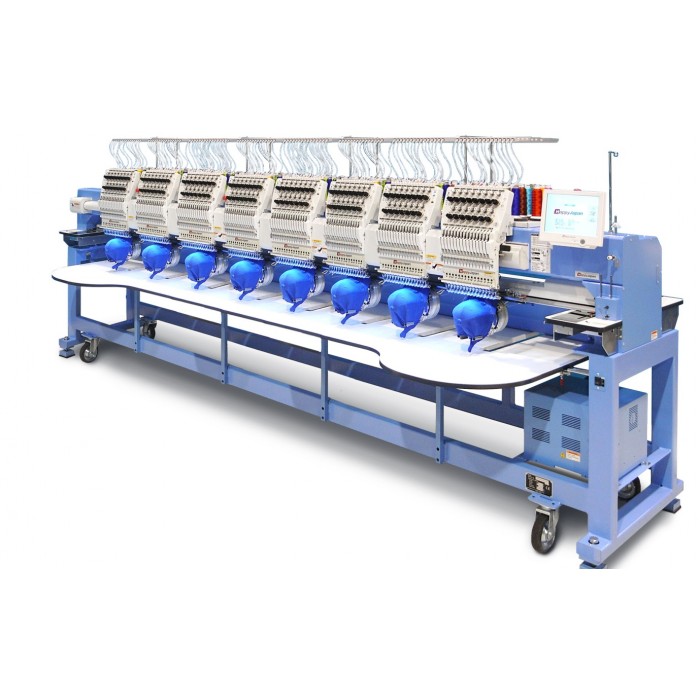

Designed with production in mind, Happy’s HCR2-1508 commercial embroidery machine unit couples impressive production power with efficient packaging of the HCR2 line. HAPPY multi-heads are long-known for their quality and durability and the new HCR3 technology helps make the 1508 our strongest, most productive 8-head yet, with servo-driven main motors for faster, quieter sewing, and reinforced construction in many key areas for for greater durability and more consistent quality over a wide variety of conditions.
KEY FEATURES
⦁ Servo-driven main motor for quieter, higher speed operation
⦁ New carriage base design for smoother, steadier operation at all sewing speeds
⦁ Improved sewing head powers through tougher sewing jobs
⦁ Large, user-friendly touch screen control with on-board help, auto-error correction
⦁ USB flash drive ports, LAN and USB direct PC connection ports, connection software included
⦁ 40 million stitch/999-design memory; organize designs in folders, pull designs from remote PC
⦁ Load & set up additional designs while the machine is sewing for max productivity
⦁ Automatic Color Change / 250 changes allowed per design
⦁ Make Design Adjustments On-The-Spot: flip/rotate, auto-repeat, fine-scaling, offset from center, and more
⦁ Automatic production & error reporting
⦁ Quick detachable support table (shown)

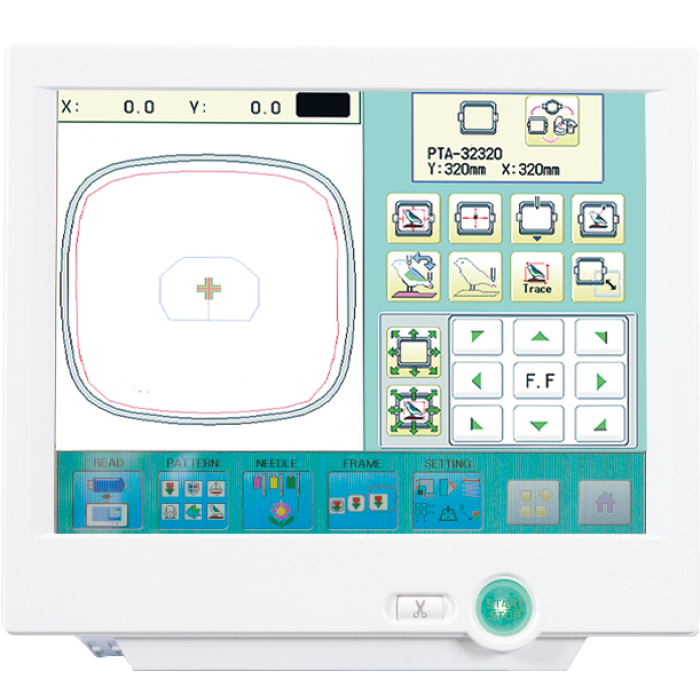

Multi-Head Machines have a 10″ touch screen panel that is packed with features!
⦁
⦁ • The 10″ touch screen has a vivid LCD interface
• Easy Design Placement- Shows hoop as related to the design
• Displays your key sewing information at a Glance
• Customize your screen the way you want
• Easily place the Applications that you use most on the main screen
• One touch frame out for easy Applique
• Easy Design trace
• Full Built-in Networking and USB ports
• Auto Error correction for the most common issues
• One touch Firmware updates
• Advanced Control over every aspect of your sewing experience-
• Speed
• position
• Color Sequence/ Change
• And Much More!
HAPPY HCR2- 1508 Machine Specifications
INCLUDED WITH MACHINE
(new HCR embroidery machines purchased from Texmac)
⦁ Full set of tubular hoops, 2 of each size per sewing head:
⦁ 16 x 12cm round hoops
⦁ 16 x 15cm round hoops
⦁ 16 x 18cm round hoops
⦁ 16 x 32cm square hoops
⦁ Full cap sewing equipment: quick-change sash and drivers, 16 cap hoops (2 per head). Auto-design rotation on entering cap mode
⦁ Operator’s toolkit and manuals
⦁ Heavy duty casters and height-adjustable feet
⦁ Installation, setup, telephone and internet support from Texmac
⦁ 5-year limited warranty on all Happy HCR multi-head embroidery machines
Machine Performance Specs
⦁ Configuration: 8 heads, 15 needles per head
⦁ Max speed (normal) 1,000spm; cap sewing: 750spm.
⦁ Max needle distance: 360mm
⦁ Memory capacity: 250 designs or up to 40 million stitches, 99 color changes per design
Embroidery Sewing Field Per Head
⦁ Max needle distance: 450mm x 360mm (17.5″ x 14.2″)
⦁ Tubular frame field: 320mm x 320mm (12.5″ x 12.5″)
⦁ Ballcaps: 80mm x 350mm (3″x14″)

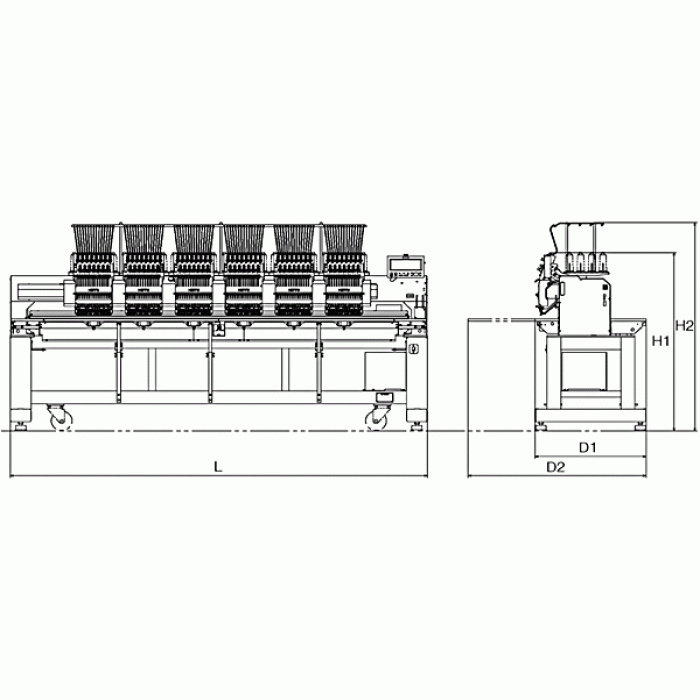

Key Outer Dimensions
⦁ Length: 157″; Depth: 32″ with table removed; 51″ table installed; Height: 63″ with thread rack, 52.7″ without.
⦁ Crated dimensions 165″w x 44″d x 68″h
⦁ Weight: 3058 lb in crate; 2266 lb installed
Power Requirements
⦁ Power type: 220v Single-phase, frequency 50/60hz
⦁ Usage: 800w
