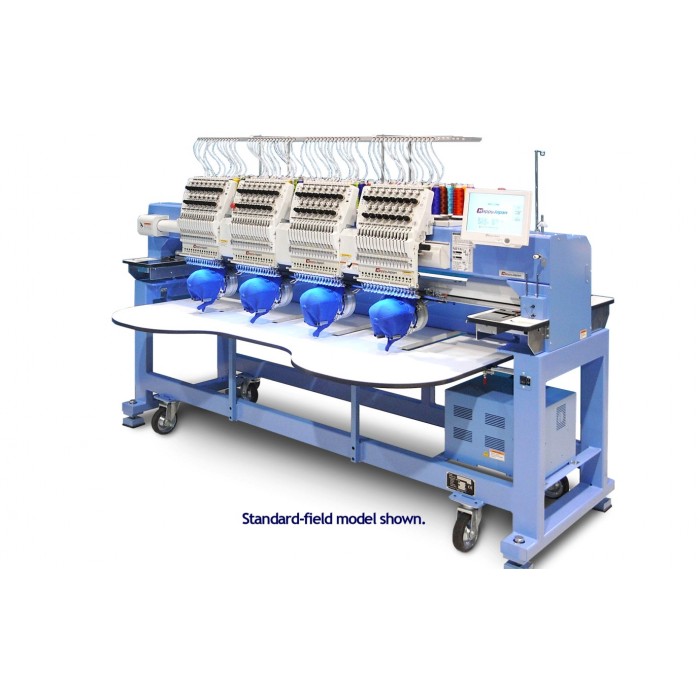

The HCR3-x1504 is for production embroiderers who are looking for multi-head production power on large items. Built on the proven and tested 6-head chassis, this stretched field 1504 allows for a generous 17.25″ x 16.5″ hoop. This is excellent for sewing large items in quantity, such as large team applique uniforms, full jacket backs, or even mass-producing patches. The machine is still compatible with conventional field Happy hoops as well. The HCR3-x1504 continues HAPPY’s tradition of exceptionally durable, high-quality machines, adding the HCR3-generation technology , with servo-driven motors for faster, quieter sewing, and more robust construction in many key areas for greater durability and more-consistent sewing quality at high speeds on even the most challenging surfaces.
KEY FEATURES
⦁ Servo-driven main motor for quieter, higher speed operation
⦁ New carriage base design for smoother, steadier operation at all sewing speeds
⦁ Improved sewing head powers through tougher sewing jobs
⦁ Large, user-friendly touch screen control with on-board help, auto-error correction
⦁ USB flash drive ports, LAN and USB direct PC connection ports, connection software included
⦁ 40 million stitch/999-design memory; organize designs in folders, pull designs from remote PC
⦁ Load & set up additional designs while the machine is sewing for max productivity
⦁ Automatic Color Change / 250 changes allowed per design
⦁ Make Design Adjustments On-The-Spot: flip/rotate, auto-repeat, fine-scaling, offset from center, and more
⦁ Automatic production and error reporting
⦁ Quick detachable support table (shown)

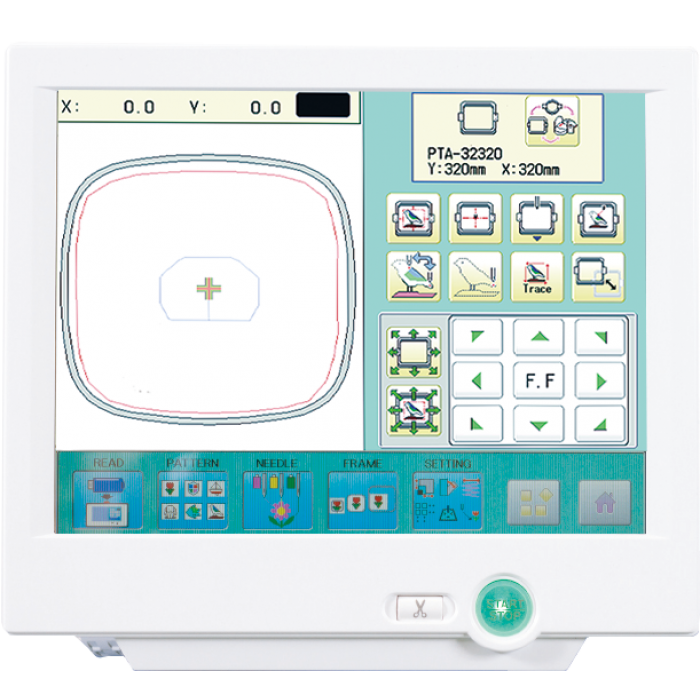

Multi-Head Machines have a 10″ touch screen panel that is packed with features!
• The 10″ touch screen has a vivid LCD interface
• Easy Design Placement- Shows hoop as related to the design
• Displays your key sewing information at a Glance
• Customize your screen the way you want
• Easily place the Applications that you use most on the main screen
• One touch frame out for easy Applique
• Easy Design trace
• Full Built-in Networking and USB ports
• Auto Error correction for the most common issues
• One touch Firmware updates
• Advanced Control over every aspect of your sewing experience-
• Speed
• position
• Color Sequence/ Change
• And Much More!
HAPPY HCR3-X1504 Machine Specifications
INCLUDED WITH MACHINE
(new HCR embroidery machines purchased from Texmac)
⦁ Full set of tubular hoops, 2 of each size per sewing head:
⦁ 8 x 12cm round hoops
⦁ 8 x 15cm round hoops
⦁ 8 x 32cm square hoops
⦁ 8 x 44cm x 420cm large square wooden hoops
⦁ Full cap sewing equipment: quick-change sash and drivers, 8 cap hoops (2 per head). Auto-design rotation on entering cap mode
⦁ Operator’s toolkit and manuals
⦁ Heavy duty casters and height-adjustable feet
⦁ Installation, setup, telephone and internet support from Texmac
⦁ 5-year limited warranty on all Happy HCR multi-head embroidery machines
Machine Performance Specs
⦁ Configuration: 4 heads, 15 needles per head, stretched sewing field
⦁ Max speed (normal) 1,100spm; cap sewing: 1000spm.
⦁ Max needle distance: 500mm
⦁ Memory capacity: 999 designs or up to 40 million stitches, 250 color changes per design
Embroidery Sewing Field Per Head
⦁ Max needle distance: 450mm x 500mm (17.7″ x 19.7″)
⦁ Tubular frame field: 440mm x 420mm (17.3″ x 16.5″)
⦁ Ballcaps: 80mm x 360mm (3″x 14.2″)

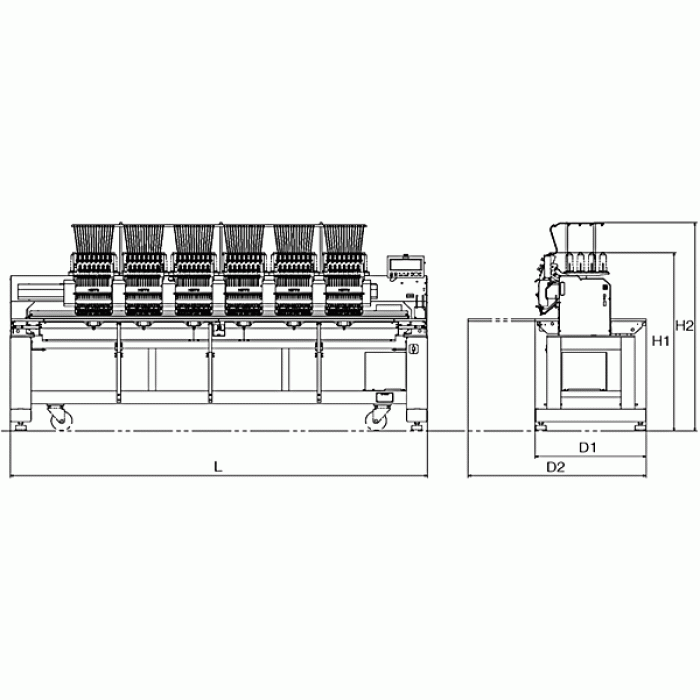

Key Outer Dimensions
⦁ Length: 3.0M (118 inches); Depth (D1=830mm/32.7″ with table removed) (D2=128cm/52″; Height: 68.5″ with thread rack, 59.4″ without.
⦁ Weight: 1760 lb uncrated
Power Requirements
⦁ Power type: 220v Single-phase, frequency 50/60hz
⦁ Usage: 190-650w*Weights, dimensions and other data may be subject to correction.
