F7 STANDALONE BIOMETRIC ACCESS CONTROLOne touch. That's all it takes for access control with ZK Software's F7 biometric reader that offer the flexibil..
Easy
Returns
Lowest Price
Guarantee
F7 STANDALONE BIOMETRIC ACCESS CONTROL

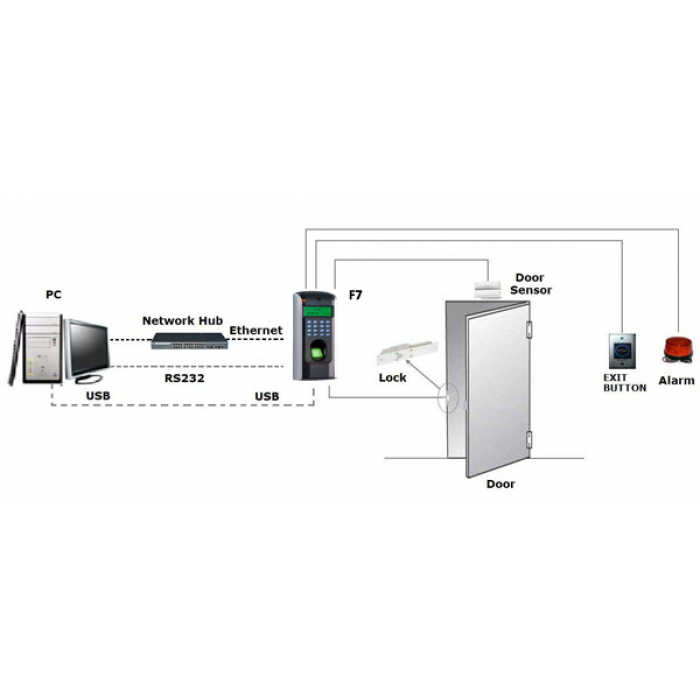

One touch. That's all it takes for access control with ZK Software's F7 biometric reader that offer the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. Fast, reliable performance combined with affordability gives ZK readers the competitive edge.
Using the fastest fingerprint-matching algorithm in the industry, ZK readers provide unparalleled precision and speed at less than half the cost of competing vendors. Each reader has the capacity to store up to 1,000 fingerprint templates and 30,000 transactions. Enrolling users is fast and easy, since most of our readers have a user-friendly keypad and display. Managing our readers is also simple. All our readers are easily accessed through a TCP/1P or serial port, with the ability to automatically update and synchroni2e when networked together.
Features
Fingerprint reader w/ durable highly accurate ZK optical sensor
No need to enter PINs
Supports 50 time zones, 5 groups and 10 unlock combinations
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Operates stand-alone without computer
Real-time 1-touch data export to 3rd party hosted & non-hosted applications
Audio-Visual indications for acceptance & rejection of valid and invalid fingerprints
SDK available for OEM customers and software developers
Optional heated/unheated door enclosure available
Capacity to store 2200 templates and 50000 transactions
Specifications
Capacity Verification/Identification
Templates Matching
2200 1:N up to 2200 templates
Transactions Verification
50000 <= 1 second
Identification
<= 2 seconds
FRR
<= 1%
FAR
Display <= 0.001% Environment
LCD Oper. Temp
2 x 16 inch Character backlit LCD Display 32°-105°F (0°-42°C) Communication Power
Port Oper. Voltage
RS 232/RS 485 12V, DC
Port Idle Current
Ethernet 10/100 60 mA
Port Oper. Current
26 bit Wiegand Output 450 mA
Relay Output
12V DC, 3A
Dimensions Part Numbers
Length F7
7.3 inches / 185mm Standalone Biometric Access Control Terminal
Width
