DESCRIPTION
The AL2200W-K is a powerful and user friendly GSM/Wi-Fi security alarm system with a LCD display, touch keypad and simple voice operation.
This Smart Home Security Alarm System can be connected to a local Wi-Fi network or simply inserting a SIM card. When alarm triggered, the AL2200W-K will let you know the status via push messages alerts (through mobile app), phone calls and SMS text messages wherever you are.
The Wi-Fi capability, allows the alarm to send push messages with the status and can activate/deactivate remotely through its mobile App (Android & Apple).
Having a GSM capability, the panel also can be used like a telephone with intercom function. When alarm triggered, it will automatically dial the preset user phone numbers to report alarm information.
This AL2200-K accepts 64 wireless zones, making it a great option for residential and commercial applications or even for large buildings.
A battery backup holds the system running for 5 to 8 hours in the case of a power failure.
SPECIFICATION
⦁ GSM frequency: 850/900/1800/1900MHZ
⦁ Wireless frequency: 433MHZ
⦁ Alarm mode: With Internet Network and GSM Network alarm, GSM Network with GPRS function, remote arm and disarm panel through CMS or SMS. CID protocol and SMS notification.
⦁ With a new large-screen, full-touch buttons, LCD graphic display steps, work status, Alarm process easy and intuitive for end users.
⦁ The full English voice prompting operation: all local or remote operation, alarm information, event log view.
⦁ GSM-hook and voice telephone with intercom function.
⦁ Enable enroll total 8 wireless remote, 32 wireless intelligent switches, 2 wireless two way siren, unlimited for quantities of one way wireless siren and 16 RFID tags.
⦁ Sleep mode: Under sleep mode, all the lights, backlight, voice and remind tone are disabled.
⦁ Alarm panel under idle status is equivalent to a cell phone, you can call through the GSM network.
⦁ Electrical switches control: User can remote switch on/off via SMS or APP.
⦁ Remote phone operation: dialing by telephone offsite, after password verification, you can arm, disarm, listen-in premise, system status query, electrical switches controls and other operations.
⦁ Voice Alarm: When panel alarm, it will automatically dial the preset user phone numbers to report alarm information then you can remote control the panel after enter user passwords.
⦁ 64 wired zones, each wireless zone can automatically learn the codes or be coded manually via the keyboard.
⦁ Status inspection function: Enable record and inquiry 120 alarm event messages. Like the time when happens anti-tamper alarm, detector alarm, tel-line off, arm, disarm, system setting, battery low voltage etc. And also can inquiry the zone number and alarm type.
⦁ Timing arm and disarm: 4 sets of timing arm and disarm time.
⦁ Zone programmable: factory preset for each zone type. Users can modify all the zone type according to the actual needs.
⦁ Clock: Built-in full automatic calendar clock, set to local time consistent.
⦁ Password access management: the panel has one administrator password 16 user password, The administrator password primarily for system administrators to set up the alarm system; The user passwords for users in the day-to-day use such arm/ disarm, remote operation. The administrator password, user password can be freely modified.
⦁ For CMS networking alarm, depending on the number of users, the user can set four, six or eight user codes (account number).
⦁ Zone type identification: After an alarm is triggered, the alarm zone number displayed on the LCD screen of the panel, also can send the detailed report to CMS which includes alarm locations and zone types.
⦁ The tampering alarm: cut the cable between wired detectors and the panel will trigger alarm, the telephone line cut will automatically trigger siren alarm. When someone deliberately dismantled the panel, it will alarm when triggering tamper switch at the back of the panel.
⦁ Timing arm/disarm: Enable set 4 group time arm/disarm time.
⦁ CMS communications test: The panel will send a message to CMS at the pre-set time interval to inspect the communication if normal.
⦁ Siren options: Built-in siren (included), Wireless siren (optional). All sirens can be programmed as enable/disable when alarms.
⦁ The voice speaker volume adjustment: total 8 level, adjust the volume by a panel arrow keys.
⦁ The wireless detector low battery prompted: Detectors will send status report to the panel every 1-3 hours, the corresponding zone number and the battery voltage symbol will be displayed on the LCD screen and also will report to CMS.

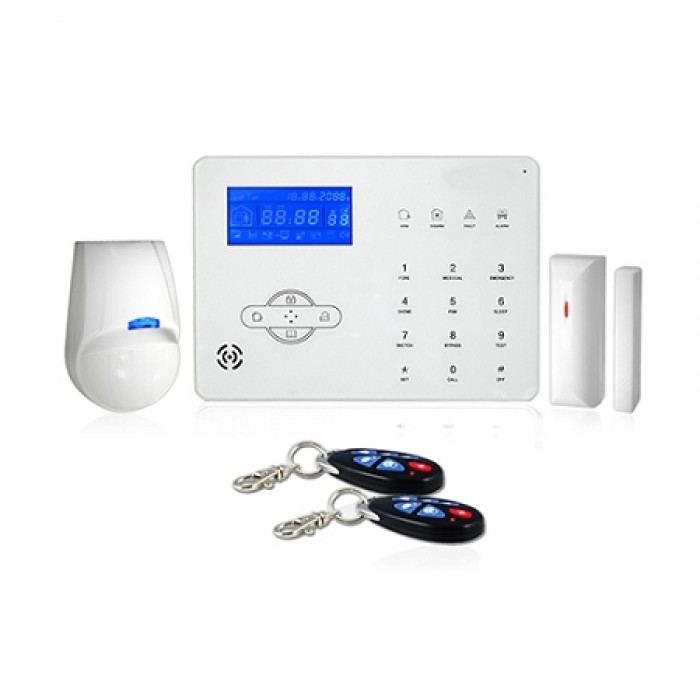

KIT includes:
⦁ Main console x 1 (backup battery included)
⦁ Wireless P.I.R Motion Detector x 1 (9V battery included)
⦁ Wireless Door / Window Detector x 1 (12V battery included)
⦁ Wireless Remote control handset x 2 (12V battery included)
⦁ AC Power Adapter x 1
⦁ 1 Year Warranty
